• Lightweight Construction
Provides an additional protective layer without adding unnecessary bulk to hydraulic hose assemblies.
• Excellent Flexibility
The soft polyester textile structure adapts easily to curved hose routes and compact installation spaces.
• Everyday Abrasion Protection
Helps reduce surface wear caused by light friction and contact with surrounding equipment components.
• Easy Hose Organization
Creates a neat, uniform exterior for hose bundles, supporting efficient routing and convenient maintenance.
1. Lightweight Polyester Construction
Provides practical hose coverage while minimizing additional weight and bulk.

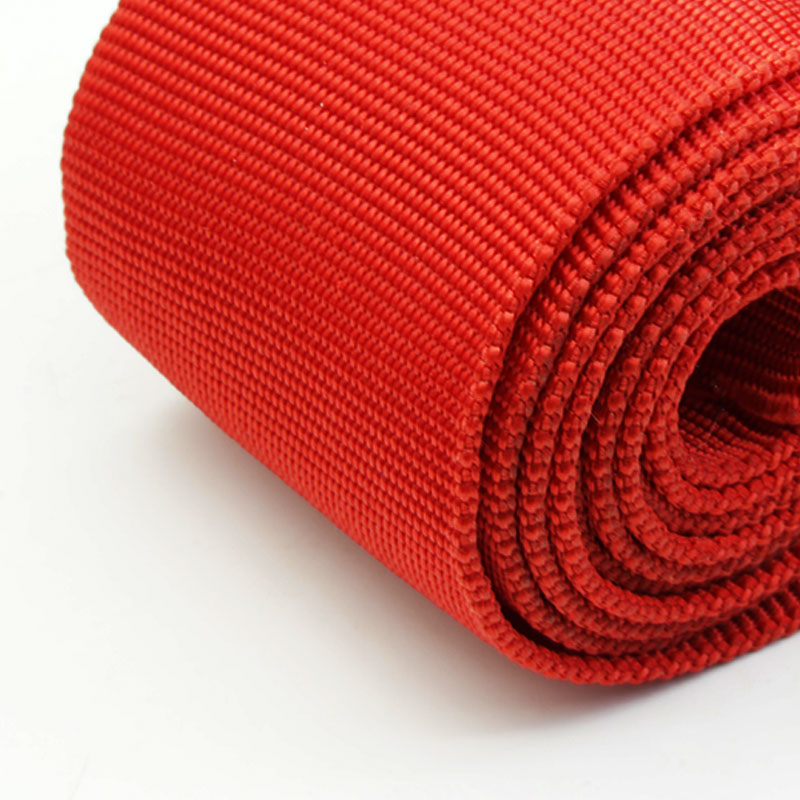

2. Flexible Hollow Woven Design
Adapts easily to curved hose routes and compact installation spaces.
3. Everyday Abrasion Resistance
Helps protect hose surfaces from light rubbing and routine mechanical contact.

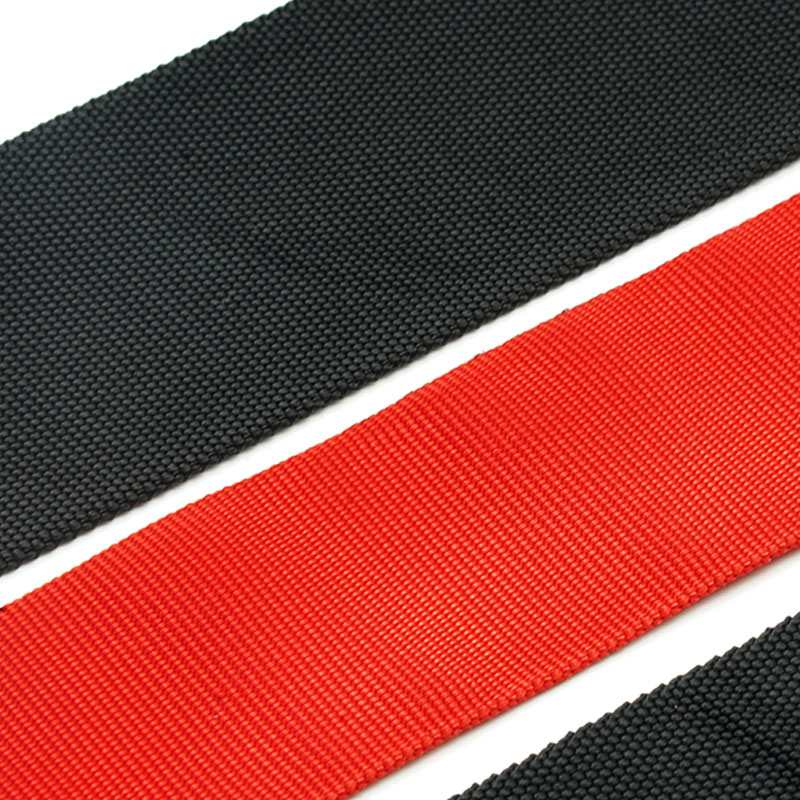

4. Smooth Textile Exterior
Creates a neat, uniform outer surface for improved hose organization.

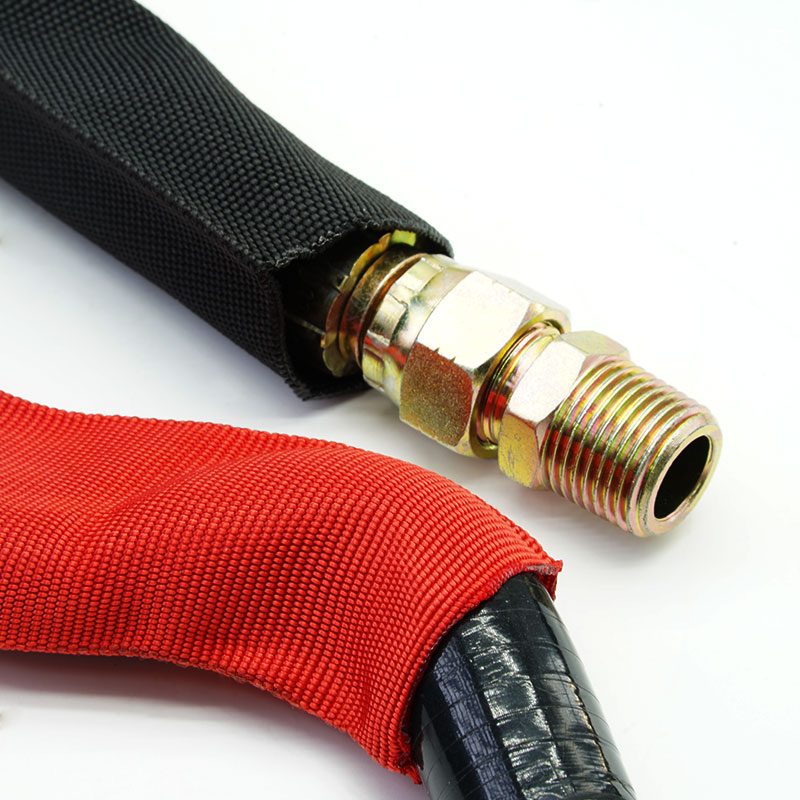

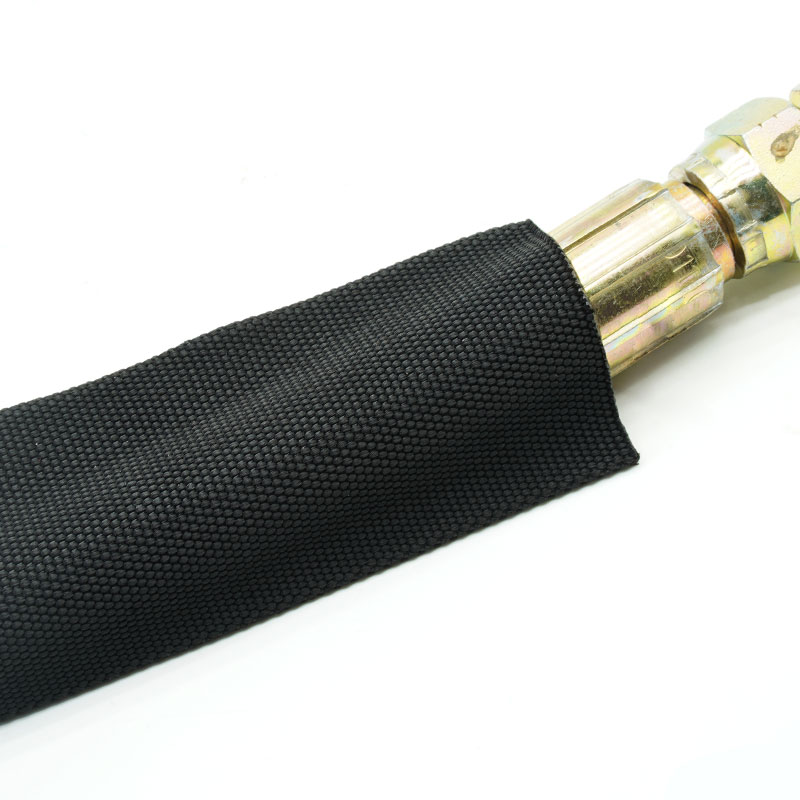

5. Convenient Installation
The flexible tubular structure allows easy fitting over compatible hoses and cable bundles.
6. Customizable Supply Options
Available in specified diameters, lengths, colors and packaging formats to meet project requirements.
| Material |
Polyester
|
| Working Temperature |
-40°C to +150°C |
| Melting Point |
220±10°C |
| Flammability |
FMVSS 302 |
| MSHA Compliance |
Refer to MSHA IC293/01 |
| Blasting Resistance |
Refer to ISO3457 |
| Abrasion Resistance |
Refer to ISO 6945 |
| Anti-leakage |
Conform to SAE J343 |
| UV Resistant |
Conform to BS EN13758-1 |
| Standard Color |
Black |
| Cutting Tool |
Hot knife |
Specifications
|
Part No
|
I.D
(mm)
|
Flat Width
(mm)
|
Wall
Thickness
(mm)
|
Packing
Length
(m/spool)
|
| HPS-PES-S-010-BK-T8 |
10 |
20 |
0.8±0.1
|
50 |
| HPS-PES-S-012-BK-T8 |
12 |
24 |
0.8±0.1
|
50 |
| HPS-PES-S-014-BK-T8 |
14 |
25 |
0.8±0.1 |
50 |
| HPS-PES-S-017-BK-T8 |
17 |
30 |
0.8±0.1 |
50 |
| HPS-PES-S-020-BK-T8 |
20 |
35 |
0.8±0.1 |
50 |
HPS-PES-S-023-BK-T8
|
23 |
39 |
0.8±0.1 |
50 |
| HPS-PES-S-025-BK-T8 |
25 |
42 |
0.8±0.1 |
50 |
HPS-PES-S-027-BK-T8
|
27 |
46 |
0.8±0.1 |
50 |
HPS-PES-S-031-BK-T8
|
31 |
52 |
0.8±0.1 |
50 |
| HPS-PES-S-033-BK-T8 |
33 |
55 |
0.8±0.1 |
50 |
HPS-PES-S-036-BK-T8
|
36 |
60 |
0.8±0.1 |
50 |
| HPS-PES-S-040-BK-T8 |
40 |
66 |
0.8±0.1 |
50 |
HPS-PES-S-044-BK-T8
|
44 |
72 |
0.8±0.1 |
50 |
| HPS-PES-S-047-BK-T8 |
47 |
77 |
0.8±0.1 |
50 |
| HPS-PES-S-050-BK-T8 |
50 |
80 |
0.8±0.1 |
50 |
| HPS-PES-S-053-BK-T8 |
53 |
86 |
0.8±0.1 |
50 |
HPS-PES-S-056-BK-T8
|
56 |
91 |
0.8±0.1
|
50 |
HPS-PES-S-060-BK-T8
|
60 |
97 |
0.8±0.1
|
50 |
HPS-PES-S-062-BK-T8
|
62 |
100 |
0.8±0.1
|
50 |
| HPS-PES-S-066-BK-T8 |
66 |
107 |
0.8±0.1
|
50 |
| HPS-PES-S-073-BK-T8 |
73 |
118 |
0.8±0.1
|
50 |
HPS-PES-S-078-BK-T8
|
78 |
126 |
0.8±0.1
|
50 |
| HPS-PES-S-080-BK-T8 |
80 |
130 |
0.8±0.1
|
50 |
HPS-PES-S-085-BK-T8
|
85 |
137 |
0.8±0.1
|
50 |
| HPS-PES-S-090-BK-T8 |
90 |
145 |
0.8±0.1
|
50 |
HPS-PES-S-093-BK-T8
|
93 |
149 |
0.8±0.1
|
50 |
HPS-PES-S-102-BK-T8
|
102 |
165 |
0.8±0.1
|
50 |
HPS-PES-S-106-BK-T8
|
106 |
170 |
0.8±0.1
|
50 |
| HPS-PES-S-112-BK-T8 |
112 |
179 |
0.8±0.1
|
50 |
| HPS-PES-S-127-BK-T8 |
127 |
206 |
0.8±0.1
|
50 |
Typical Applications
Compact Hydraulic Power Units
Provides lightweight surface protection for return, drain and auxiliary hoses routed through limited cabinet spaces.
Factory Automation Equipment
Protects flexible hoses and tubing around machine frames, control assemblies and compact mechanical installations.
Light Industrial Machinery
Helps reduce minor surface scuffing on hydraulic lines exposed to routine vibration and occasional component contact.
OEM Hose Assemblies
Provides a neat, consistent exterior covering for customized hose kits, supporting organized installation and maintenance.
Measure the maximum outside diameter of the individual hose or complete hose bundle, including fittings, clamps and local transitions. Choose a sleeve that installs without excessive stretching yet remains close enough to avoid snagging or uncontrolled movement. Review bend radius, flex frequency, rubbing points, temperature, hydraulic fluids, outdoor exposure and the method used to secure each end. For applications requiring protection against high-pressure fluid spray or hose bursts, the sleeve's suitability should be verified under the relevant operating and test conditions.
Customization Available
• Diameter and Bundle Fit - Select suitable sleeve sizes based on the outside diameter of individual hoses or multi-hose bundles.
• Cut Lengths and Tolerances - Customized cut lengths and tolerance control to meet the requirements of specific machine zones, hose kits, or assembly stations.
• Color and Identification - Black is the standard color; printed labels or other identification options can be evaluated upon request.

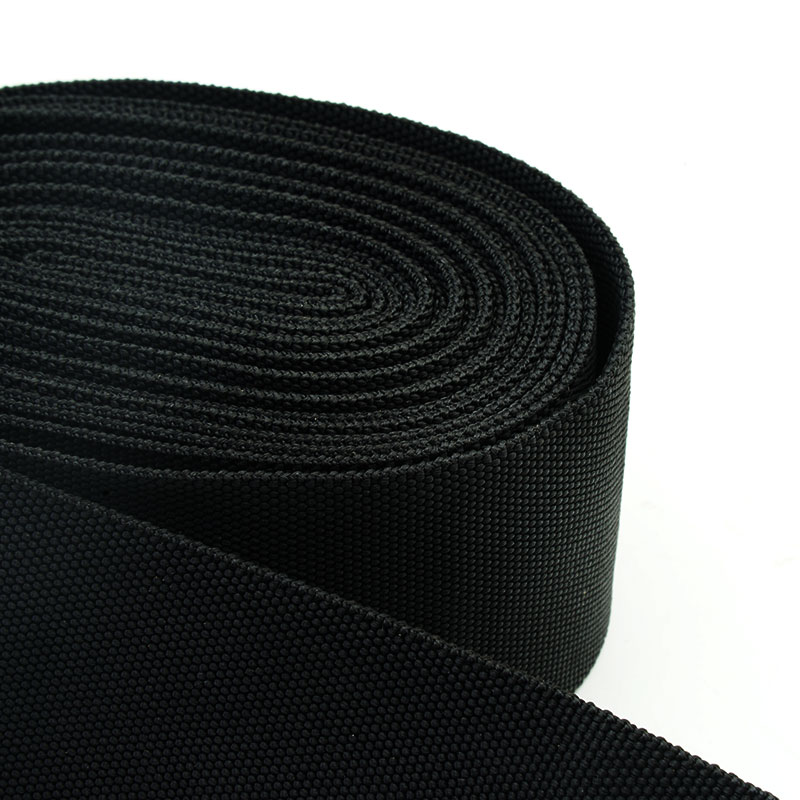

• Packaging - Available in rolls, bags, kits, and customized OEM cartons.
• Incoming yarn verification - Material identity and agreed purchasing requirements are checked before production.
• Wall and construction checks - Nominal thickness and textile build are measured according to the approved inspection plan.
• Size and fit review - Finished diameter and sample fit are compared with the confirmed hose or bundle dimensions.
• Workmanship inspection - The sleeve is examined for yarn damage, contamination, uneven coverage and unacceptable openings.
• Order conformity - Length, marking, end finish, quantity and packaging are checked against the released order.
Frequently Asked Questions
01. Can the sleeve be cut using ordinary scissors?
Yes. Suitable sharp textile scissors can be used, but the cut edges may fray. A controlled thermal cutting method is recommended when a cleaner, more stable edge is required.
02. Does the sleeve require additional end fixation?
End fixation depends on the installation conditions. Cable ties, clamps or other suitable retaining methods may be considered to prevent unwanted sleeve movement.
03.Will the sleeve absorb moisture?
Polyester fibers have relatively low moisture absorption, but the woven structure is not waterproof and may allow water to pass through.
04. How should unused sleeves be stored?
Store them in a clean, dry environment away from prolonged direct sunlight, excessive heat and sharp objects that could damage the textile structure.
Request a Sample or Quote
Send the hose or bundle outside diameter, routing conditions, abrasion points, temperature, fluid exposure, finished length and order quantity. MJ FLEX will review the fit and arrange a HPS-PES-S-T8 sample or quotation.
